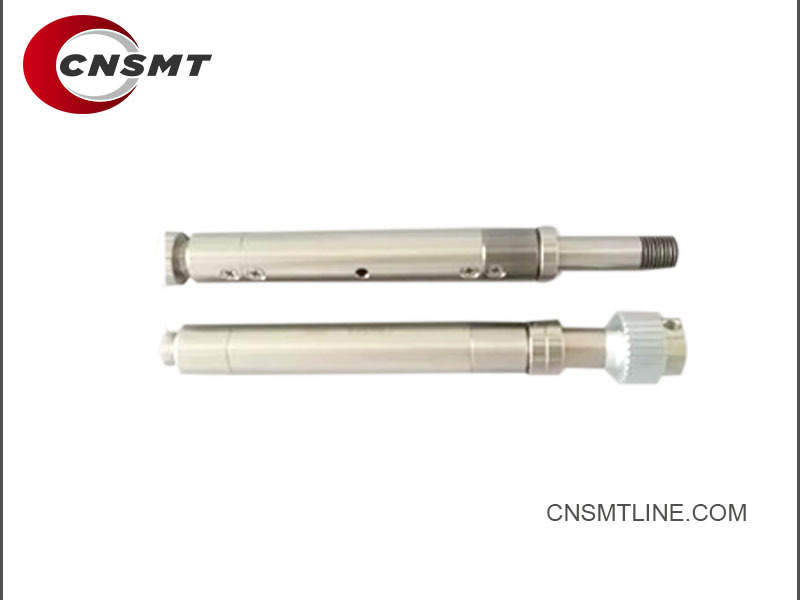

KHY-M7106 M7107 Yamaha YG12 YS12 24 M20 SMT machine suction nozzle rod shaft sleeve original

KHY-M7106 M7107 Yamaha YG12 YS12 24 M20 SMT machine suction nozzle rod shaft sleeve original

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Main Part Numbers

Part Name Part Number Description

Nozzle Shaft KHYM710600 / A0 Main suction nozzle shaft with sleeve (ball spline type)
Nozzle Shaft KHYM710700 / A0 Alternate nozzle shaft (functionally similar)

Related Accessories Part Numbers

Part Category Part Number Description

Nozzle Body KHYM771000, KHYM772000, etc. Nozzle tips for various sizes (compatible with YG/YS)
Nozzle Holder KGRM71M0A11, KGRM71M0A1X Nozzle holder, connects the nozzle to the shaft
Return Spring KHYM715100 Nozzle shaft return spring
Copper Bushing (No standard P/N, sold with shaft or separately) Wearresistant copper sleeve for nozzle shaft
Bearing Standard precision miniature bearing Supports smooth shaft movement
Guide Slider KV8M710600X, KHYM711S Nozzle shaft guide slider for head mechanism
Vacuum Sensor KHYM86 series Vacuum detection sensor
Nozzle Presence Sensor KHYM861000 Nozzle presence detection sensor

Extended Compatible Part Numbers

Part Number Description

KHYM711SA00 Nozzle shaft assembly for YS/YG heads
KHYM712SA00 Shaft for YS24 head
KV8M710600X Shaft sliding guide assembly
KV8M7107A0X Shaft matching component
KKEM7107A0 / B0 Nozzle shaft variant for YS12

Recommendation for Spare Parts Stocking

Prioritize the following core parts for maintenance or replacement:

KHYM710600 / KHYM710700 → Nozzle shaft
KGRM71M0A11 → Nozzle holder
KHYM715100 → Return spring
KHYM771000 ~ KHYM774000 → Nozzle tips
